DigiKeyLin Engineering· Motors, actuators, solenoids and drivers

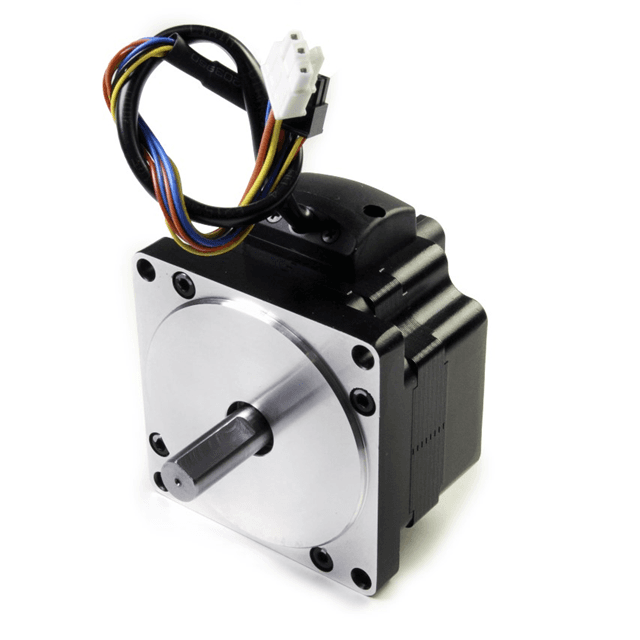

Lin Engineering BL34E27-02D-03RO — BLDC MOTOR WITH ENCODER
Manufacturer part no. BL34E27-02D-03RO
€352.56
In stock — 28 unitslead time 112 d
- Conforme à RoHS
Estimated landed cost
| Item | €352.56 |
| Shipping (free over threshold) | Free |
| VAT (20%) | €70.51 |
| Total delivered | €423.07 |
Estimate for a single item delivered to mainland France, shipped from outside the EU: customs duty and clearance fees may apply and are charged by the carrier.
Volume pricing
| Qty | Unit price | Saving |
|---|---|---|
| ≥ 1 | €352.56 | |
| ≥ 8 | €321.63 | −9 % |
Datasheets & documents
Specifications (automatically extracted)
Mechanical
| Speed | 4 000 rpm |
Other characteristics
| Puissance nominale | 200 W |
| Couple assigne oz in mnm | 67,97 / 480 |
| Couple momentane max oz in mnm | 135,9 / 960 |
| Diametre arbre | 0,472 po (12,00mm) |
| Espacement des orifices de montage | 2,739po (69,58mm) |
| Fonction | Standard |
| Longueur arbre et roulement | 1,181po (30,00mm) |
| Style de terminaison | Fil conducteur avec connecteur |
| Taille dimension | Carré - 3,146po x 3,146po (79,92mm x 79,92mm) |
| Temperature de fonctionnement | -20°C ~ 50°C |
| Tension nominale | 48V CC |
| Type | Moteur CC |
| Type de codeur | Incrémental |
Compliance
| Moisture sensitivity (MSL) | 1 (illimité) |
Description
Brushless DC (BLDC) Moteur CC Standard 4000 tr/min 200W Incrémental 48V CC
