DigiKeySiemens· Motors, actuators, solenoids and drivers

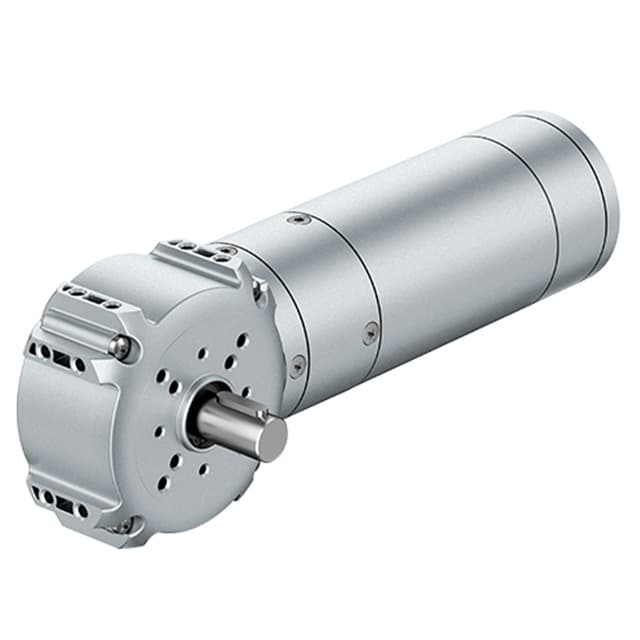

Siemens VG.ECI6340BK1.EC75.2.33 — GEARMOTOR 120 RPM 24V
Manufacturer part no. VG.ECI6340BK1.EC75.2.33
€685.28
In stock — 10 unitslead time 112 d
- Conforme à RoHS 3
Estimated landed cost
| Item | €685.28 |
| Shipping (free over threshold) | Free |
| VAT (20%) | €137.06 |
| Total delivered | €822.34 |
Estimate for a single item delivered to mainland France, shipped from outside the EU: customs duty and clearance fees may apply and are charged by the carrier.
Datasheets & documents
Specifications (automatically extracted)
Electrical
| Voltage | 24 V |
Mechanical
| Speed | 120 rpm |
Other characteristics
| Rapport de demultiplication | 33.3 |
| Couple assigne oz in mnm | 3160 / 22311 |
| Diametre arbre | 0,591po (15,00mm) |
| Espacement des orifices de montage | 2,047po (52,00mm) |
| Fonction | Motoréducteur |
| Longueur arbre et roulement | 1,181po (30,00mm) |
| Style de terminaison | Fils conducteurs |
| Taille dimension | Rond - 2,480po de diamètre (63,00mm) |
| Temperature de fonctionnement | 0°C ~ 40°C |
| Tension nominale | 24V CC |
| Type | Moteur CC |
Compliance
| Moisture sensitivity (MSL) | Sans objet |
Description
Brushless DC (BLDC) Moteur CC Motoréducteur 120 tr/min 24V CC
