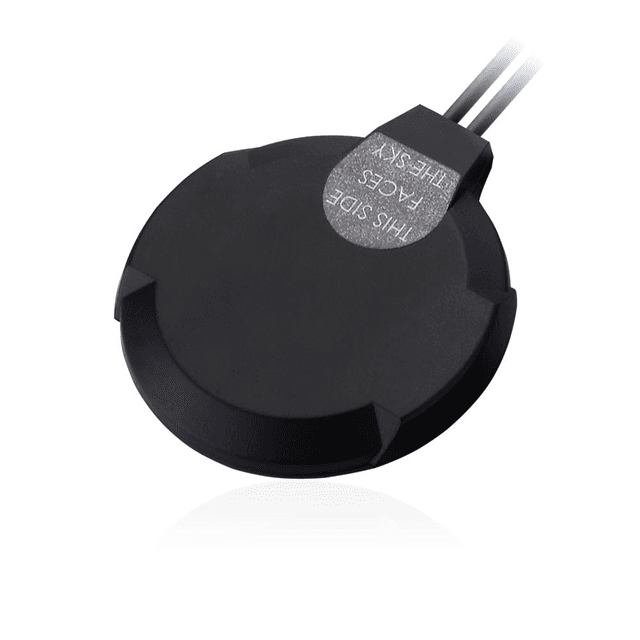

Taoglas Limited MA220.LB.001 — RF ANT 700MHZ/800MHZ MOD SMA ADH
Manufacturer part no. MA220.LB.001
€33.16
In stock — 150 unitslead time 112 d
- Conforme à RoHS 3
Estimated landed cost
| Item | €33.16 |
| Shipping | €18.00 |
| VAT (20%) | €10.23 |
| Total delivered | €61.39 |
Estimate for a single item delivered to mainland France, shipped from outside the EU: customs duty and clearance fees may apply and are charged by the carrier.
Volume pricing
| Qty | Unit price | Saving |
|---|---|---|
| ≥ 1 | €33.16 | |
| ≥ 10 | €26.96 | −19 % |
| ≥ 30 | €25.15 | −24 % |
| ≥ 100 | €23.71 | −28 % |
| ≥ 250 | €22.90 | −31 % |
Datasheets & documents
Specifications (automatically extracted)
Environment
| Indice de protection | IP67 |
Other characteristics
| Nombre d anneaux | 11 |
| Pertes par reflexion | -5 dB |
| Puissance max. | 5 W |
| Ros | 1.92 |
| Applications | DCS, GLONASS, GPS, GSM, LTE, PCS, UMTS, WCDMA, Wi-Fi |
| Fonctionnalites | Câble - 3m, LNA |
| Frequence centre bande | 700MHz, 800MHz, 850MHz, 900MHz, 1,575GHz, 1,602GHz, 1,8GHz, 1,9GHz, 2,1GHz, 2,4GHz, 2,6GHz |
| Gain | -1,54dBi, -0,53dBi, -0,53dBi, -1,07dBi, 3dBic, -0,1dBi, 0,72dBi, 0,89dBi, -2,4dBi, -1,59dBi |
| Groupe de frequences | Large bande |
| Hauteur max. | 0,472 po (12,00mm) |
| Norme gamme rf | Cellulaire, bande ISM générale, navigation, WiFi |
| Plage de frequences | 698MHz ~ 960MHz, 1,575GHz ~ 1,61GHz, 1,71GHz ~ 2,17GHz, 2,4GHz ~ 2,69GHz |
| Terminaison | SMA mâle (2) |
| Type d antenne | Module |
| Type de montage | Adhésif |
Compliance
| Moisture sensitivity (MSL) | 1 (illimité) |
Description
Antenne RF Module DCS, GLONASS, GPS, GSM, LTE, PCS, UMTS, WCDMA, Wi-Fi 700MHz, 800MHz, 850MHz, 900MHz, 1,575GHz, 1,602GHz, 1,8GHz, 1,9GHz, 2,1GHz, 2,4GHz, 2,6GHz 698MHz ~ 960MHz, 1,575GHz ~ 1,61GHz, 1,71GHz ~ 2,17GHz, 2,4GHz ~ 2,69GHz -1,54dBi, -0,53dBi, -0,53dBi, -1,07dBi, 3dBic, -0,1dBi, 0,72dBi, 0,89dBi, -2,4dBi, -1,59dBi SMA mâle (2) Adhésif
