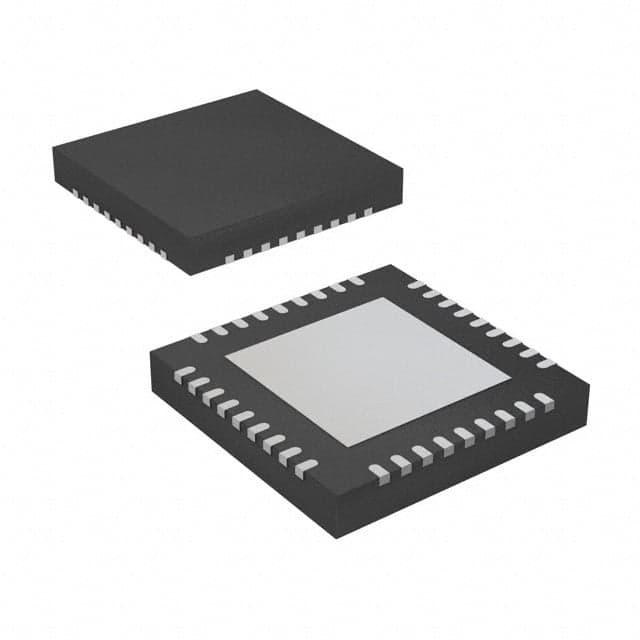

Texas Instruments DRV8313RHHR — IC MOTOR DRIVER 8V-60V 36VQFN
Manufacturer part no. DRV8313RHHR
€4.18
In stock — 3297 unitslead time 182 d
- Conforme à RoHS 3
Estimated landed cost
| Item | €4.18 |
| Shipping | €18.00 |
| VAT (20%) | €4.44 |
| Total delivered | €26.62 |
Estimate for a single item delivered to mainland France, shipped from outside the EU: customs duty and clearance fees may apply and are charged by the carrier.
Volume pricing
| Qty | Unit price | Saving |
|---|---|---|
| ≥ 1 | €4.18 | |
| ≥ 10 | €3.17 | −24 % |
| ≥ 25 | €2.92 | −30 % |
| ≥ 100 | €2.65 | −37 % |
| ≥ 250 | €2.52 | −40 % |
Datasheets & documents
Specifications (automatically extracted)
Electrical
| Voltage | 8 V |
Other characteristics
| Applications | Usage général |
| Boitier | 36-VFQFN plot exposé |
| Boitier fournisseur | 36-VQFN (6x6) |
| Configuration de sortie | Demi-pont (3) |
| Fonction | Variateur - entièrement intégré, commande et étage de puissance |
| Interface | Parallèle |
| Technologies | MOSFET de puissance |
| Temperature de fonctionnement | -40°C ~ 150°C (TJ) |
| Tension alimentation | 8V ~ 60V |
| Tension charge | 8V ~ 60V |
| Type de montage | Montage en surface |
| Type de moteur ca cc | Sans balais CC (BLDC) |
Compliance
| Moisture sensitivity (MSL) | 3 (168 heures) |
Description
MOSFET de puissance Pilote de moteur Parallèle 36-VQFN (6x6)
