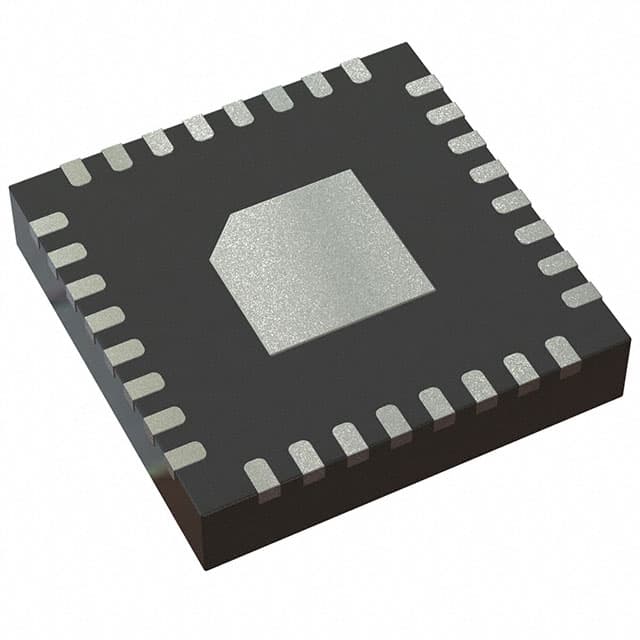

Texas Instruments DRV8702QRHBRQ1 — IC MOTOR DRIVER 5.5V-45V 32VQFN
Manufacturer part no. DRV8702QRHBRQ1
€3.17
In stock — 2950 unitslead time 112 d
- Conforme à RoHS 3
Estimated landed cost
| Item | €3.17 |
| Shipping | €18.00 |
| VAT (20%) | €4.23 |
| Total delivered | €25.40 |
Estimate for a single item delivered to mainland France, shipped from outside the EU: customs duty and clearance fees may apply and are charged by the carrier.
Volume pricing
| Qty | Unit price | Saving |
|---|---|---|
| ≥ 1 | €3.17 | |
| ≥ 10 | €2.39 | −25 % |
| ≥ 25 | €2.19 | −31 % |
| ≥ 100 | €1.98 | −38 % |
| ≥ 250 | €1.87 | −41 % |
| ≥ 500 | €1.86 | −41 % |
Datasheets & documents
Specifications (automatically extracted)
Electrical
| Voltage | 5.5 V |
Other characteristics
| Applications | CC à balais |
| Boitier | 32-VFQFN plot exposé |
| Boitier fournisseur | 32-VQFN (5x5) |
| Configuration de sortie | Demi-pont (2) |
| Fonction | Variateur - entièrement intégré, commande et étage de puissance |
| Grade | Automobile |
| Interface | PWM |
| Technologies | MOSFET de puissance |
| Temperature de fonctionnement | -40°C ~ 150°C (TJ) |
| Tension alimentation | 5,5V ~ 45V |
| Type de montage | Montage en surface, joints de brasure visibles |
| Type de moteur ca cc | CC à balais |
Compliance
| Moisture sensitivity (MSL) | 3 (168 heures) |
| Qualification | AEC-Q100 |
Description
MOSFET de puissance Pilote de moteur PWM 32-VQFN (5x5)
