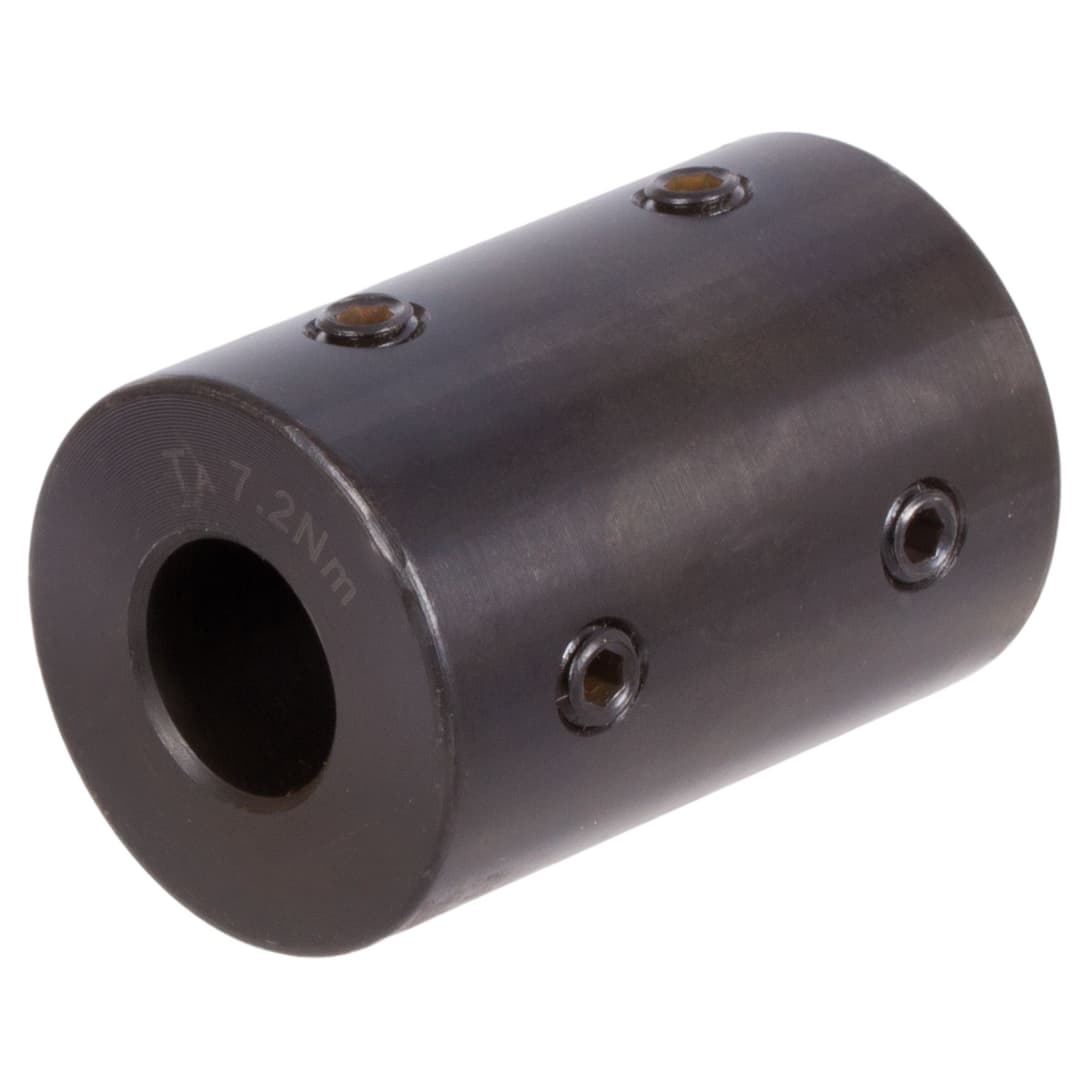

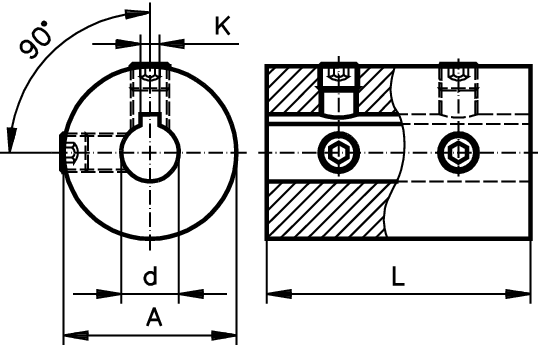

Set-screw coupling TR steel C45 black oxide finished bore 12mm with keyway
Manufacturer part no. 60021200
$53.79≈ 48.01 €
Price summary
Listed by MÄDLER at €48.01. Delivered to France, including shipping, VAT and any customs duty, it comes to about €75.61. Prices last checked on 2026-10-06.
Delivered cost is an estimate for a single item shipped to mainland France; the seller's checkout is authoritative.
In stock — 5 unitslead time 14 d
Estimated landed cost
| Item | €48.01 |
|---|---|
| Shipping | €15.00 |
| VAT (20%) | €12.60 |
| Total delivered | €75.61 |
Estimate for a single item delivered to mainland France, shipped from outside the EU: customs duty and clearance fees may apply and are charged by the carrier.
Datasheets & documents
Specifications (automatically extracted)
Mechanical
| Weight | 180 g |
Other characteristics
| Bore diameter | 12 mm |
| Max misalignment angle | 0 ° |
| Max misalignment axial | 0 mm |
| Max misalignment radial | 0 mm |
| Max speed | 4 U/min |
| Max torque | 17 Nm |
| Outer diameter | 29 mm |
| Temperature max. | 150 °C |
| Temperature min. | -40 °C |
| Tightening torque fastening screws | 7.2 Nm |
| Total length | 45 mm |
| Bolts din 916 | M 6 |
| Coupling type | Rigid one-piece stlye |
Description
Material: Steel C45, burnished. These couplings do not allow any shaft displacement in axial or radial direction. They should therefore only be used with perfectly alligned shafts. Bore tolerance: +0,05 mm. Feather Key Groove DIN 6885/1, Tolerance P9. The torques in the table are maximum values for couplings with keyway. The calculations based on feather-key connection.
