MÄDLERMÄDLER· Mechanics & transmission

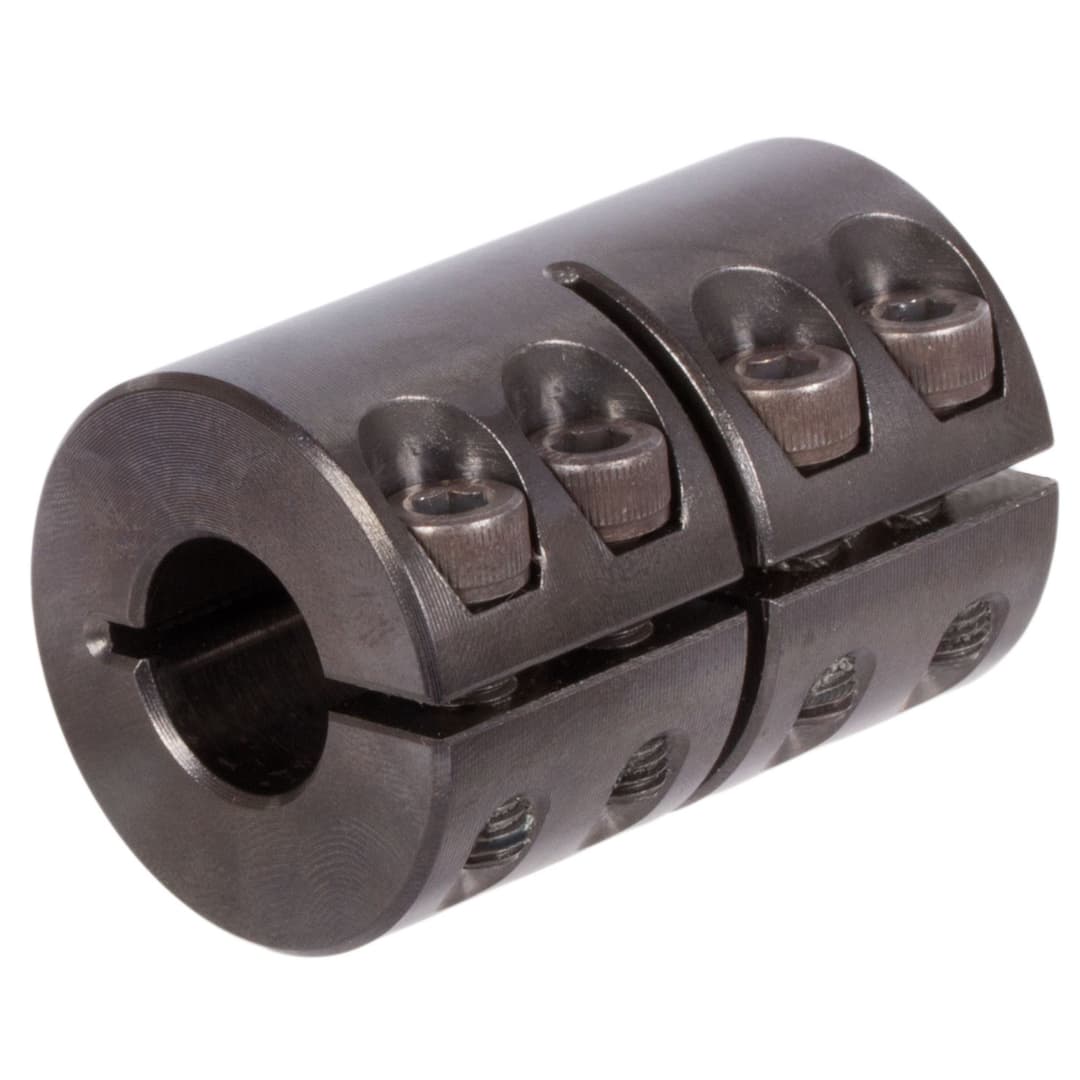

One-piece clamp coupling MAS both sides bore 50mm without keyway steel C45 black oxide finished with bolts DIN 912-12.9
Manufacturer part no. 60065000
$283.20≈ 252.77 €
Price summary
Listed by MÄDLER at €252.77. Delivered to France, including shipping, VAT and any customs duty, it comes to about €321.32. Prices last checked on 2026-10-06.
Delivered cost is an estimate for a single item shipped to mainland France; the seller's checkout is authoritative.
In stock — 3 unitslead time 14 d
Estimated landed cost
| Item | €252.77 |
|---|---|
| Shipping | €15.00 |
| VAT (20%) | €53.55 |
| Total delivered | €321.32 |
Estimate for a single item delivered to mainland France, shipped from outside the EU: customs duty and clearance fees may apply and are charged by the carrier.
Datasheets & documents
Specifications (automatically extracted)
Mechanical
| Weight | 3.52 kg |
Other characteristics
| Bore diameter | 50 mm |
| Max misalignment angle | 0 ° |
| Max misalignment axial | 0 mm |
| Max misalignment radial | 0 mm |
| Max outer diameter over screw head | 93.2 mm |
| Max speed | 4 U/min |
| Max torque | 2 250 Nm |
| Outer diameter | 85 mm |
| Temperature max. | 175 °C |
| Temperature min. | -40 °C |
| Tightening torque fastening screws | 77 Nm |
| Total length | 124 mm |
| Coupling type | Rigid one-piece stlye |
Description
Material: Steel C45, black oxide finish. Temperature range from -40°C to +175°C. Maximum speed 4000 rpm. The screws DIN 912 – 12.9 used in all couplings are covered with a layer of polyamide. Thus the bolts do not loosen with vibrations Bore tolerance: +0,051 mm. The torques in the table are maximum values which can only be achieved with perfect mounting and dimensional accuracy of the shaft.
