MÄDLERMÄDLER· Mechanics & transmission

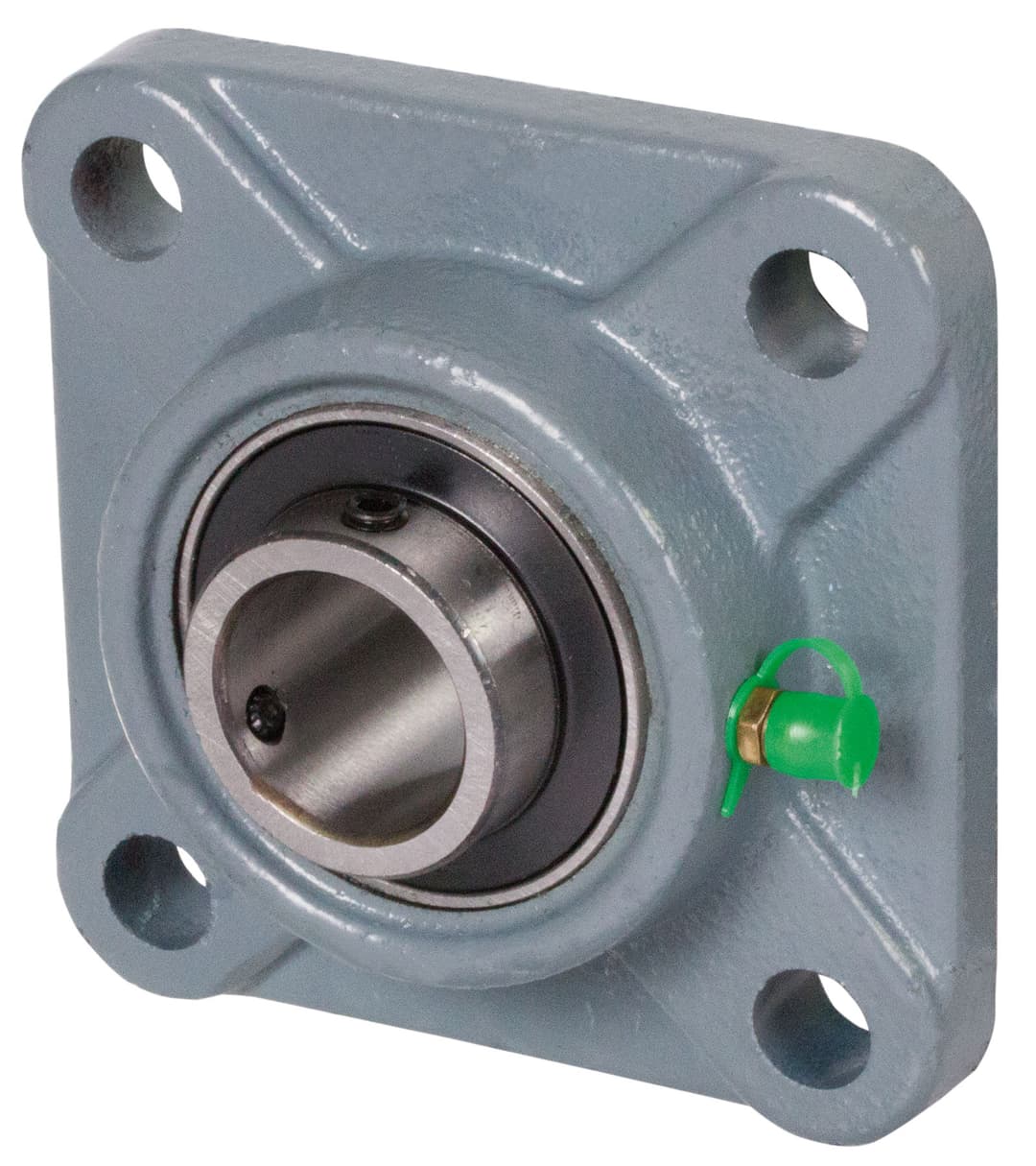

Ball flange bearing UCF 208 bore 40mm material grey cast iron
Manufacturer part no. 62604000
$44.22
Manufacturer part no. 62604000
Listed by MÄDLER at €39.47. Delivered to France, including shipping, VAT and any customs duty, it comes to about €65.36. Prices last checked on 2026-10-06.
Delivered cost is an estimate for a single item shipped to mainland France; the seller's checkout is authoritative.
| Item | €39.47 |
|---|---|
| Shipping | €15.00 |
| VAT (20%) | €10.89 |
| Total delivered | €65.36 |
Estimate for a single item delivered to mainland France, shipped from outside the EU: customs duty and clearance fees may apply and are charged by the carrier.
| Weight | 2 kg |
| Bearing load rating dyn c | 22.6 kN |
| Bearing load rating stat c0 | 15.7 kN |
| Bore | 40 mm |
| Material | Grey cast iron / Roller bearing steel |
| Surface | Varnished (Housing) |
| Type | UCF 208 |
Material: Housing from grey cast iron. Rolling bearing from bearing steel. With 4 mounting holes. The rolling bearing can be swiveled when mounting to compensate shaft misalignement. The shaft will get fastened with 2 setscrews. Lubricated for life at normal operating conditions. Re-lubricating is possible. Technical explanations page 390. Delivery with grease nipple.
