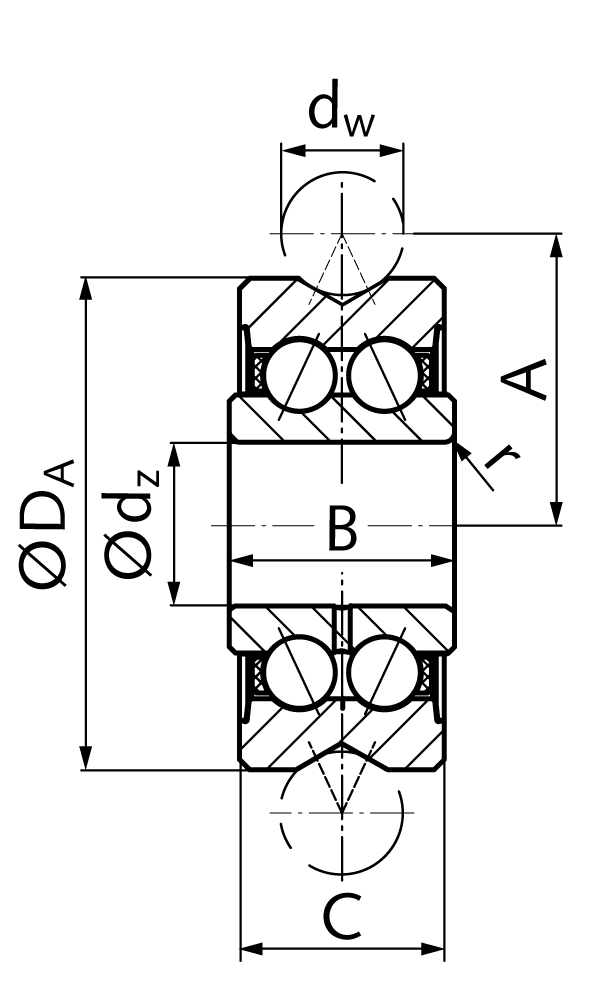

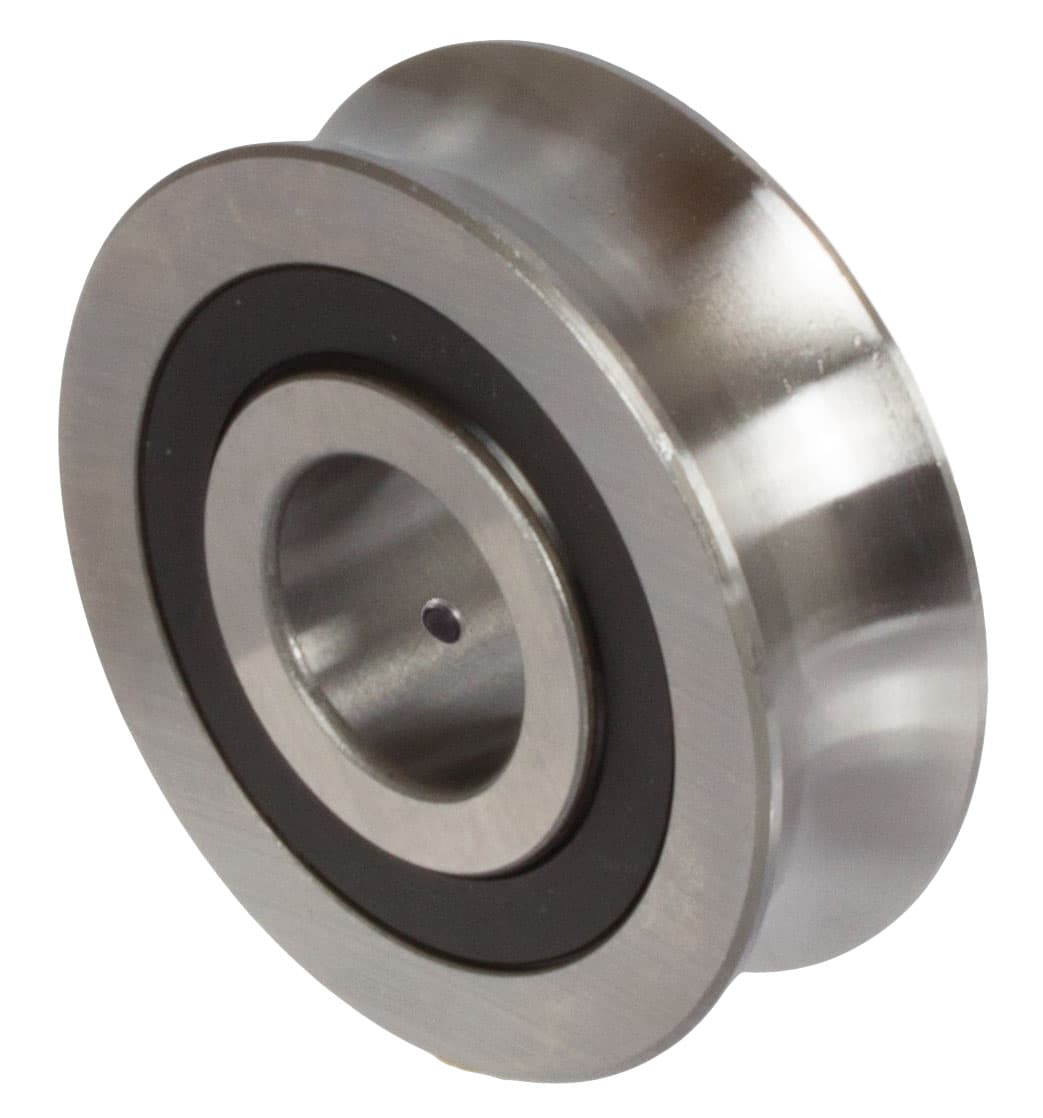

Track roller LFR50/5-6-2Z dw 6mm inner diameter 5mm outer diameter 17mm
Manufacturer part no. 64780102
$34.32≈ 30.22 €
Price summary
Listed by MÄDLER at €30.22. Delivered to France, including shipping, VAT and any customs duty, it comes to about €54.26. Prices last checked on 2026-10-01.
Delivered cost is an estimate for a single item shipped to mainland France; the seller's checkout is authoritative.
In stock — 6 unitslead time 14 d
Estimated landed cost
| Item | €30.22 |
|---|---|
| Shipping | €15.00 |
| VAT (20%) | €9.04 |
| Total delivered | €54.26 |
Estimate for a single item delivered to mainland France, shipped from outside the EU: customs duty and clearance fees may apply and are charged by the carrier.
Datasheets & documents
Specifications (automatically extracted)
Mechanical
| Weight | 10 g |
Other characteristics
| Inner diameter | 5 mm |
| Outer diameter | 17 mm |
| Shaft diameter | 6 mm |
| Material | Roller bearing steel |
| Surface | Blank |
| Type | LFR50/5-6-2Z |
Description
Material: Roller bearing steel 100Cr6. • Standard rollers in high quality with very strong outer ring and special groove design for 2-point contact. Pressure angle 30°. • Integrated double-row angular contact ball bearings for common axial and high radial load. • Usable on hardened and ground linear shaft steel with shaft support or on special linear guides. • With friction-free metal shields 2Z. Accuracy class PN DIN 620. Radial clearance approaching class CN. From size dw 16 with lubrication hole at the inner ring. Temperature range: -30°C to +90°C (for short time up to +110°C).
