DigiKeyAnalog Devices Inc./Maxim Integrated· Integrated circuits

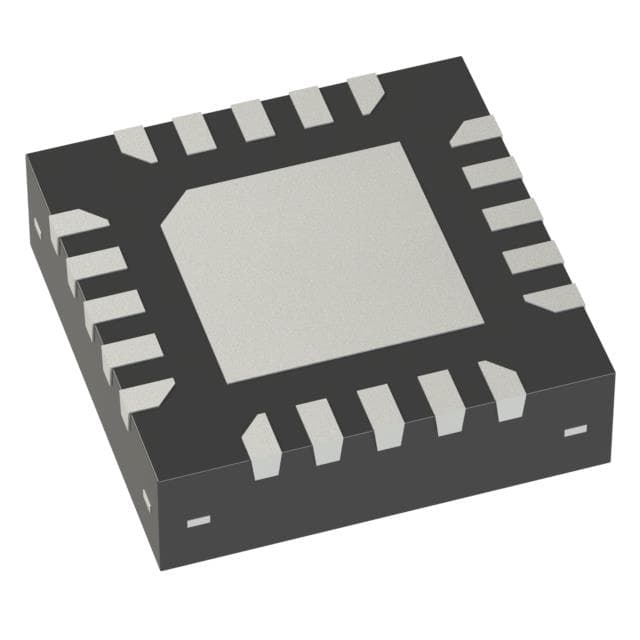

Analog Devices Inc./Maxim Integrated TMC2300-LA-T — LOW VOLTAGE MOTOR DRIVER 2-11V Q
Manufacturer part no. TMC2300-LA-T
€3.49
On backorderlead time 182 d
- Conforme à RoHS 3
Estimated landed cost
| Item | €3.49 |
| Shipping | €18.00 |
| VAT (20%) | €4.30 |
| Total delivered | €25.79 |
Estimate for a single item delivered to mainland France, shipped from outside the EU: customs duty and clearance fees may apply and are charged by the carrier.
Volume pricing
| Qty | Unit price | Saving |
|---|---|---|
| ≥ 1 | €3.49 | |
| ≥ 10 | €2.63 | −25 % |
| ≥ 25 | €2.42 | −31 % |
| ≥ 100 | €2.19 | −37 % |
| ≥ 250 | €2.07 | −41 % |
| ≥ 500 | €2.06 | −41 % |
Datasheets & documents
Specifications (automatically extracted)
Electrical
| Current | 1.2 A |
| Voltage | 11 V |
Other characteristics
| Applications | Contrôle d'automatisation, industrie, médical |
| Boitier | 20-VFQFN plot exposé |
| Boitier fournisseur | 20-QFN (3x3) |
| Configuration de sortie | Pas/direction |
| Fonction | Variateur - entièrement intégré, commande et étage de puissance |
| Interface | Pas/direction, UART |
| Resolution en pas | 1 ~ 1/256 |
| Technologies | MOSFET de puissance |
| Temperature de fonctionnement | -40°C ~ 125°C (TJ) |
| Tension alimentation | 2V ~ 11V |
| Tension charge | 1,65V ~ 1,95V |
| Type de montage | Montage en surface |
Compliance
| Moisture sensitivity (MSL) | 3 (168 heures) |
Description
MOSFET de puissance Pilote de moteur Pas/direction, UART 20-QFN (3x3)
Cheaper alternatives
Semantically close products available for less — check the specs match your need.
Similar products
DigiKeyIn stock
Analog Devices Inc./Maxim Integrated TMC6300-LA-T — BLDC MOTOR DRIVER 2-11V QFN20
€2.50
View at seller ↗
DigiKeyIn stock

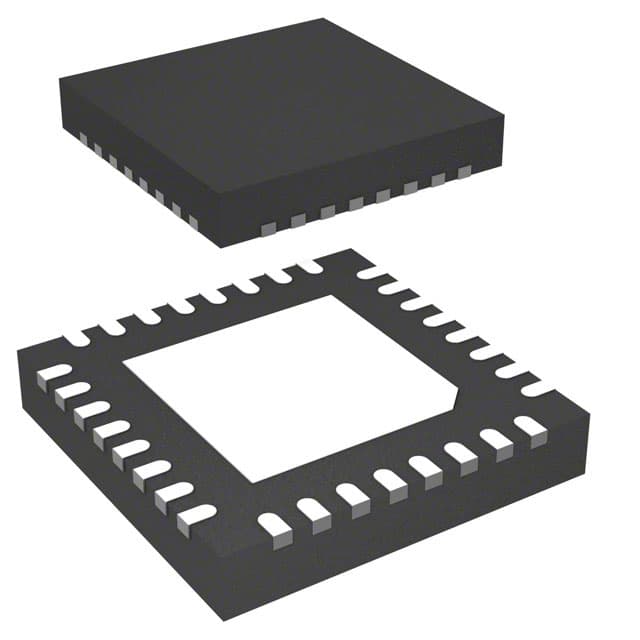

Analog Devices Inc./Maxim Integrated TMC2202-WA — STEPPER MOTOR DRIVER/CONTROLLER
