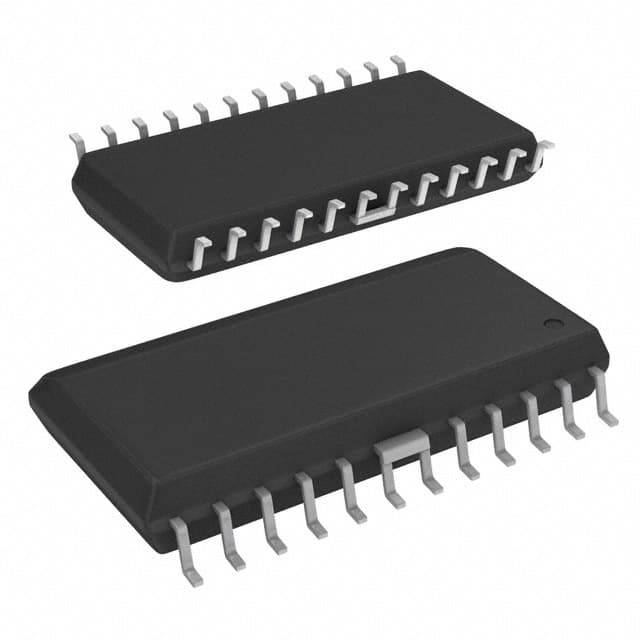

Allegro MicroSystems A4970SLBTR-T — IC MOTOR DRIVER BIPOLAR 24SOIC

Name: Allegro MicroSystems A4970SLBTR-T — IC MOTOR DRIVER BIPOLAR 24SOIC
Brand: Allegro MicroSystems
Price: 4.38 EUR
Availability: InStock

Manufacturer part no. A4970SLBTR-T

€4.38

In stock — 9713 unitslead time 168 d

Conforme à RoHS 3

View at seller ↗

Estimated landed cost

Item	€4.38
Shipping	€18.00
VAT (20%)	€4.48
Total delivered	€26.86

Estimate for a single item delivered to mainland France, shipped from outside the EU: customs duty and clearance fees may apply and are charged by the carrier.

Volume pricing

Qty	Unit price	Saving
≥ 1	€4.38
≥ 10	€3.34	−24 %
≥ 25	€3.07	−30 %
≥ 100	€2.79	−36 %
≥ 250	€2.66	−39 %

Datasheets & documents

📄 Datasheet

Specifications (automatically extracted)

Electrical

Current

0.75 A

Other characteristics

Boitier fournisseur	24 -SOIC
Applications	Usage général
Boitier	24-SOIC (0,295po, 7,50mm de largeur)
Configuration de sortie	Demi-pont (4)
Fonction	Variateur - entièrement intégré, commande et étage de puissance
Interface	Marche/Arrêt
Technologies	DMOS
Temperature de fonctionnement	-20°C ~ 150°C (TJ)
Tension alimentation	4,75V ~ 5,25V
Tension charge	7,45V ~ 45V
Type de montage	Montage en surface
Type de moteur ca cc	CC à balais
Type de moteur pas a pas	Bipolaire
