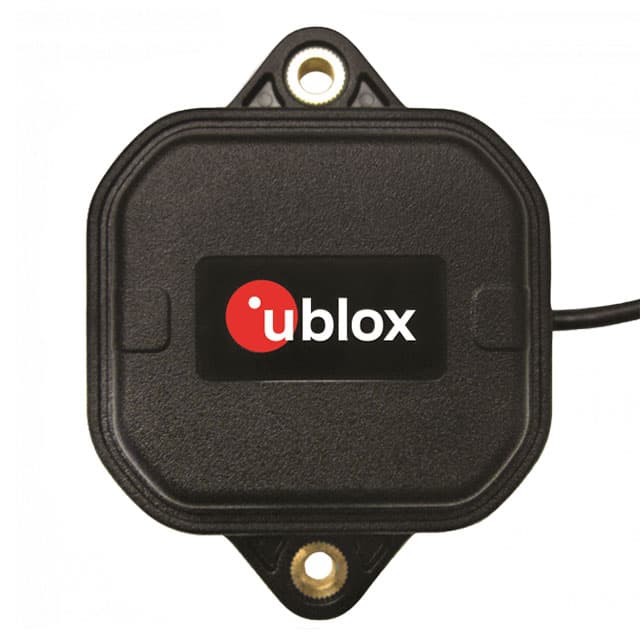

u-blox ANN-MB1-00 — MULTI-BAND GNSS ANTENNA, L1/L5
Manufacturer part no. ANN-MB1-00
€53.96
In stock — 1404 unitslead time 140 d
- Conforme à RoHS 3
Estimated landed cost
| Item | €53.96 |
| Shipping (free over threshold) | Free |
| VAT (20%) | €10.79 |
| Total delivered | €64.75 |
Estimate for a single item delivered to mainland France, shipped from outside the EU: customs duty and clearance fees may apply and are charged by the carrier.
Volume pricing
| Qty | Unit price | Saving |
|---|---|---|
| ≥ 1 | €53.96 | |
| ≥ 10 | €40.49 | −25 % |
| ≥ 50 | €34.21 | −37 % |
| ≥ 100 | €32.61 | −40 % |
Datasheets & documents
Specifications (automatically extracted)
Environment
| Indice de protection | IP67 |
Other characteristics
| Nombre d anneaux | 2 |
| Ros | 2 |
| Applications | Beidou, Galileo, GLONASS, GNSS, GPS |
| Fonctionnalites | Câble - 5m, LNA |
| Frequence centre bande | 1,176GHz, 1,5825GHz |
| Gain | 1,3dBic, 3,8dBic |
| Groupe de frequences | UHF (1GHz ~ 2GHz) |
| Hauteur max. | 0,886po (22,50mm) |
| Norme gamme rf | Navigation |
| Plage de frequences | 1,164GHz ~ 1,188GHz, 1,559GHz ~ 1,606GHz |
| Terminaison | SMA |
| Type d antenne | Module |
| Type de montage | Montage à vis |
Compliance
| Moisture sensitivity (MSL) | 1 (illimité) |
Description
Antenne RF Module Beidou, Galileo, GLONASS, GNSS, GPS 1,176GHz, 1,5825GHz 1,164GHz ~ 1,188GHz, 1,559GHz ~ 1,606GHz 1,3dBic, 3,8dBic SMA Montage à vis
