DigiKeyEspressif Systems· RF and wireless

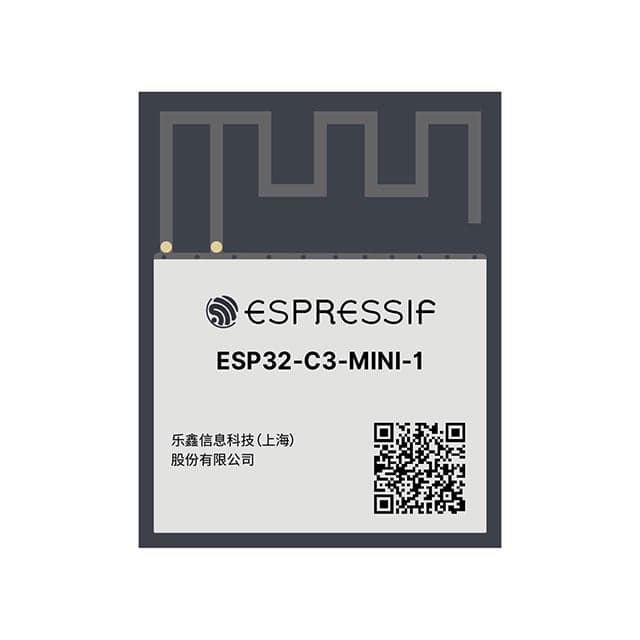

Espressif Systems ESP32-C3-MINI-1-N4 — RF TXRX MOD BT WIFI PCB TH SMD
Manufacturer part no. ESP32-C3-MINI-1-N4
€2.85
In stock — 22317 unitslead time 56 d
- Conforme à RoHS 3
Estimated landed cost
| Item | €2.85 |
| Shipping | €18.00 |
| VAT (20%) | €4.17 |
| Total delivered | €25.02 |
Estimate for a single item delivered to mainland France, shipped from outside the EU: customs duty and clearance fees may apply and are charged by the carrier.
Volume pricing
| Qty | Unit price | Saving |
|---|---|---|
| ≥ 1 | €2.85 | |
| ≥ 10 | €2.46 | −14 % |
| ≥ 25 | €2.33 | −18 % |
| ≥ 100 | €2.14 | −25 % |
| ≥ 250 | €2.03 | −29 % |
Datasheets & documents
Specifications (automatically extracted)
Other characteristics
| Debit de donnees | 150 Mbps |
| Puissance sortie | 20.5 dBm |
| Sensibilite | -104 dBm |
| Boitier | Module 53-SMD |
| Circuit integre composant utilise | ESP32-C3FN4 |
| Courant reception | 82mA ~ 84mA |
| Courant transmission | 290mA ~ 350mA |
| Frequence | 2,412GHz ~ 2,484GHz |
| Interfaces serie | ADC, GPIO, I2C, I2S, JTAG, PWM, SPI, UART, USB |
| Norme gamme rf | Bluetooth, WiFi |
| Programmable digikey | Vérifié |
| Protocole | 802.11b/g/n, Bluetooth v5.0 |
| Taille memoire | 4Mo Flash, 384Ko ROM, 400Ko SRAM |
| Temperature de fonctionnement | -40°C ~ 85°C (TA) |
| Tension alimentation | 3V ~ 3,6V |
| Type d antenne | Trace carte CI |
| Type de montage | Montage en surface |
Compliance
| Moisture sensitivity (MSL) | 3 (168 heures) |
Description
Bluetooth, WiFi 802.11b/g/n, Bluetooth v5.0 Modules d'émetteurs-récepteurs RF 2,412GHz ~ 2,484GHz Trace carte CI Montage en surface
Cheaper alternatives
Semantically close products available for less — check the specs match your need.
Similar products
DigiKeyIn stock

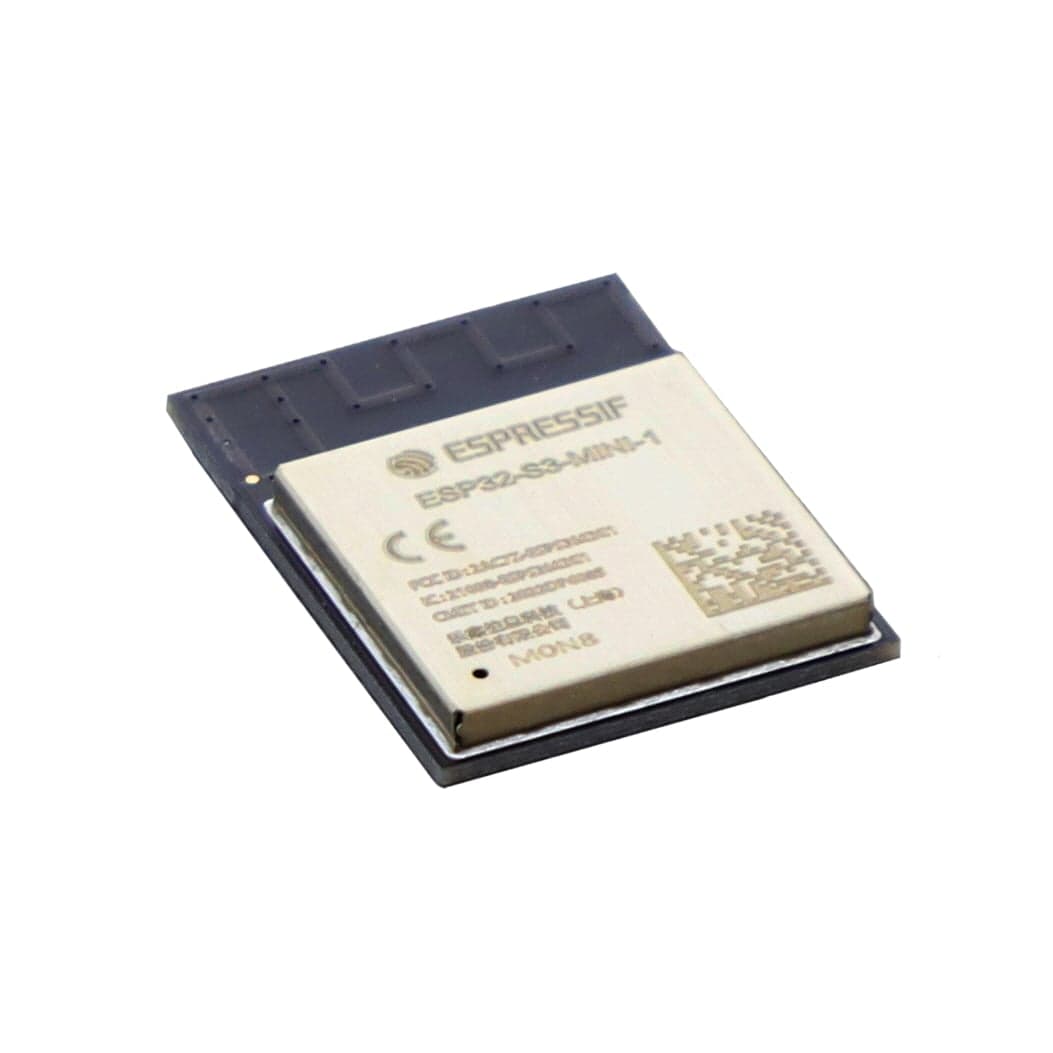

Espressif Systems ESP32-S3-MINI-1-N8 — RF TXRX MOD BT WIFI PCB TH SMD
€4.75
View at seller ↗
DigiKeyIn stock

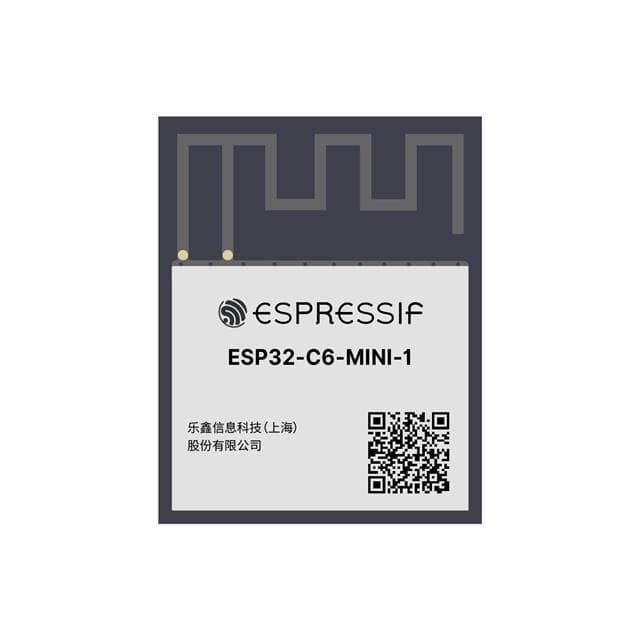

Espressif Systems ESP32-C6-MINI-1-N4 — RF TXRX MOD BT WIFI PCB TH SMD
€3.96
View at seller ↗
DigiKeyIn stock
Espressif Systems ESP32-C3-WROOM-02-N4 — RF TXRX MOD BT WIFI PCB TH SMD
€2.96
View at seller ↗
DigiKeyIn stock

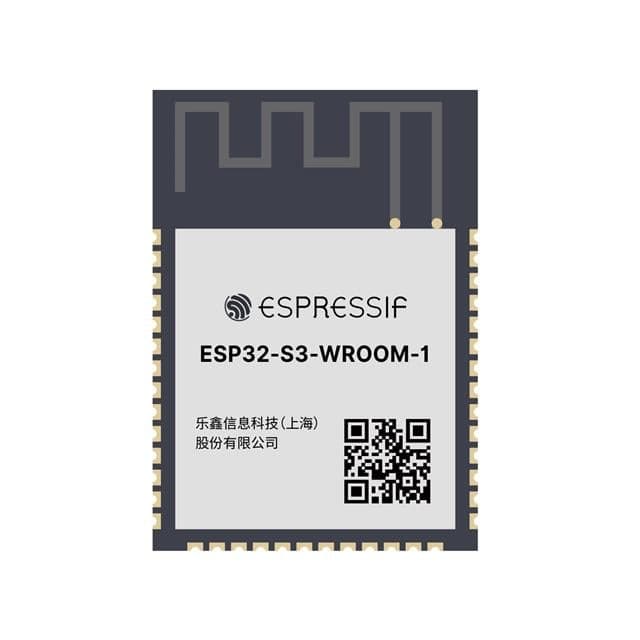

Espressif Systems ESP32-S3-WROOM-1-N4 — RF TXRX MOD BT WIFI PCB TH SMD
