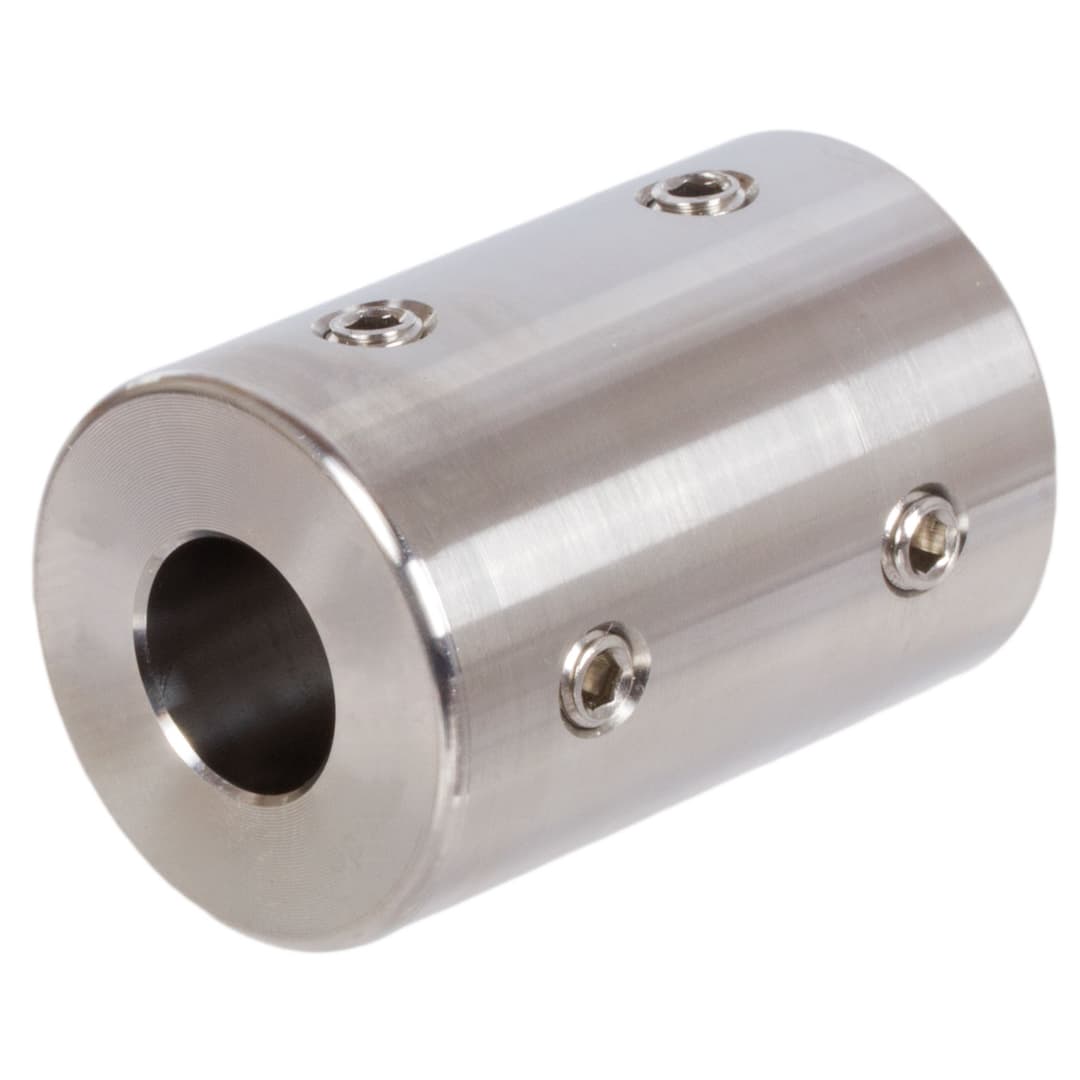

Set-screw coupling TR bore 50mm with keyway stainless steel 1.4305

MÄDLERMÄDLER· Mechanics & transmission

Set-screw coupling TR bore 50mm with keyway stainless steel 1.4305

Name: Set-screw coupling TR bore 50mm with keyway stainless steel 1.4305
Brand: MÄDLER
Price: 460.61 USD
Availability: InStock

Manufacturer part no. 60099250

$460.61≈ 408.74 €

Price summary

Listed by MÄDLER at €408.74. Delivered to France, including shipping, VAT and any customs duty, it comes to about €508.49. Prices last checked on 2026-10-07.

Delivered cost is an estimate for a single item shipped to mainland France; the seller's checkout is authoritative.

In stock — 1 unitslead time 14 d

View at seller ↗

Estimated landed cost

Landed cost breakdown
Item	€408.74
Shipping	€15.00
VAT (20%)	€84.75
Total delivered	€508.49

Estimate for a single item delivered to mainland France, shipped from outside the EU: customs duty and clearance fees may apply and are charged by the carrier.

Datasheets & documents

Specifications (automatically extracted)

Mechanical

Weight

3.52 kg

Other characteristics

Bore diameter	50 mm
Max misalignment angle	0 °
Max misalignment axial	0 mm
Max misalignment radial	0 mm
Max speed	4 U/min
Max torque	340 Nm
Outer diameter	85 mm
Temperature max.	150 °C
Temperature min.	-40 °C
Tightening torque fastening screws	26.4 Nm
Total length	124 mm
Bolts din 916	M 10
Coupling type	Rigid one-piece stlye

Description

Material: Stainless steel 1.4305 (AISI 303). These couplings do not allow any shaft displacement in axial or radial direction. They should therefore only be used with perfectly alligned shafts. Bore tolerance: +0,05 mm. Feather Key Groove DIN 6885/1, Tolerance P9. The torques in the table are maximum values for couplings with keyway. The calculations based on feather-key connection.
