DigiKeyTexas Instruments· Integrated circuits
Texas Instruments DRV8231DSGR — 33V H BRIDGE MOTOR DRIVER WITH C
Manufacturer part no. DRV8231DSGR
€1.44
In stock — 8096 unitslead time 63 d
- Conforme à RoHS 3
Estimated landed cost
| Item | €1.44 |
| Shipping | €18.00 |
| VAT (20%) | €3.89 |
| Total delivered | €23.33 |
Estimate for a single item delivered to mainland France, shipped from outside the EU: customs duty and clearance fees may apply and are charged by the carrier.
Volume pricing
| Qty | Unit price | Saving |
|---|---|---|
| ≥ 1 | €1.44 | |
| ≥ 10 | €1.05 | −27 % |
| ≥ 25 | €0.96 | −33 % |
| ≥ 100 | €0.85 | −41 % |
| ≥ 250 | €0.80 | −44 % |
| ≥ 500 | €0.77 | −46 % |
| ≥ 1,000 | €0.77 | −47 % |
Datasheets & documents
Specifications (automatically extracted)
Electrical
| Current | 3.7 A |
| Voltage | 33 V |
Other characteristics
| Applications | Imprimante |

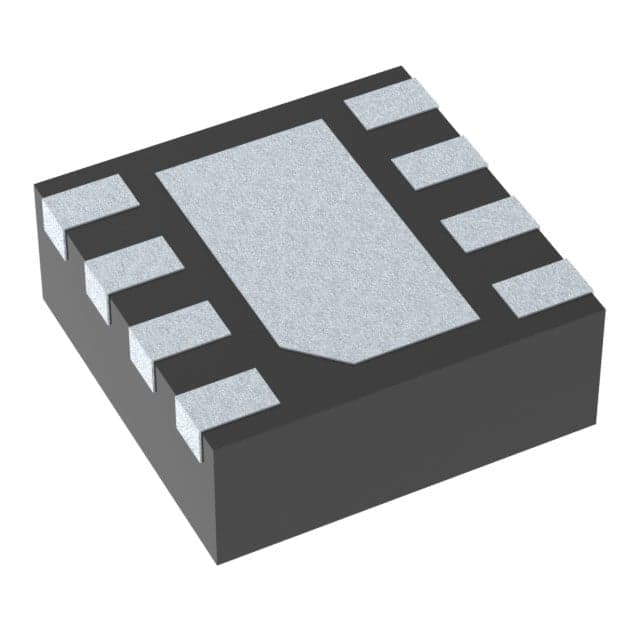

| Boitier | 8-WFDFN plot exposé |
| Boitier fournisseur | 8-WSON (2x2) |
| Configuration de sortie | Demi-pont (2) |
| Fonction | Variateur - entièrement intégré, commande et étage de puissance |
| Interface | PWM |
| Technologies | NMOS |
| Temperature de fonctionnement | -40°C ~ 125°C (TA) |
| Tension alimentation | 4,5V ~ 33V |
| Tension charge | 4,5V ~ 33V |
| Type de montage | Montage en surface |
| Type de moteur ca cc | CC à balais |
| Type de moteur pas a pas | Bipolaire |
Compliance
| Moisture sensitivity (MSL) | 1 (illimité) |
Description
NMOS Pilote de moteur Bipolaire PWM 8-WSON (2x2)
